ev3dev.hardware.sensors.ev3

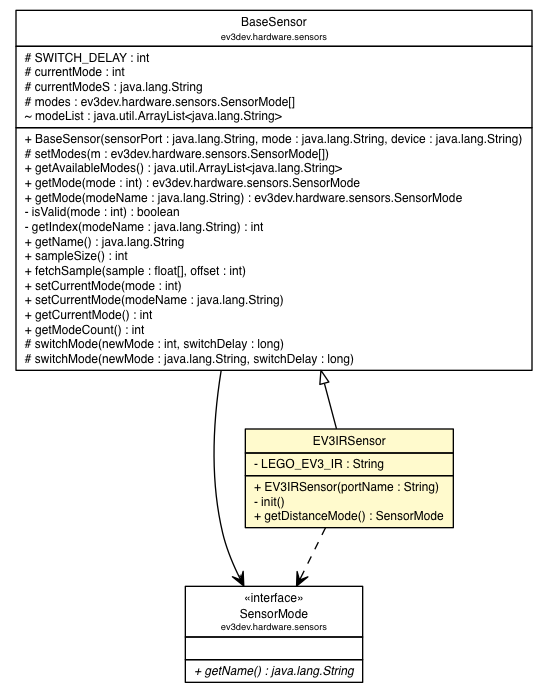

Class EV3IRSensor

java.lang.Object

ev3dev.hardware.Device

ev3dev.hardware.EV3DevDevice

ev3dev.hardware.EV3DevSensorDevice

ev3dev.hardware.sensors.BaseSensor

ev3dev.hardware.sensors.ev3.EV3IRSensor

All Implemented Interfaces:

EV3DevSensorDeviceCommands, SensorMode, SensorModes, SupportedPlatform, java.io.Closeable, java.lang.AutoCloseable, SampleProvider

public class EV3IRSensor
extends BaseSensor

EV3 Infra Red sensors
The digital EV3 Infrared Seeking Sensor detects proximity to the robot and reads signals emitted by the EV3 Infrared Beacon. The sensors can alse be used as a receiver for a Lego Ev3 IR remote control. EV3 Infra Red sensors
The sensors can be used as a receiver for up to four Lego Ev3 IR remote controls using the methods. See Sensor Product page See The leJOS sensors framework See leJOS conventions for SampleProviders

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
private class	EV3IRSensor.DistanceMode

Field Summary

Fields

Modifier and Type	Field and Description
private static java.lang.String	LEGO_EV3_IR

Fields inherited from class ev3dev.hardware.sensors.BaseSensor

currentMode, currentModeS, modes, SWITCH_DELAY

Fields inherited from class ev3dev.hardware.EV3DevDevice

ADDRESS, DEVICE, DEVICE_ROOT_PATH, LEGO_PORT, LEGO_SENSOR, MODE, PATH_DEVICE

Fields inherited from class ev3dev.hardware.Device

closeList

Fields inherited from interface ev3dev.hardware.sensors.EV3DevSensorDeviceCommands

BATTERY, BATTERY_BRICKPI, BATTERY_EV3, BATTERY_PISTORMS, LEGO_UART_SENSOR, SENSOR_MODE, SENSOR_MODES

Fields inherited from interface ev3dev.hardware.SupportedPlatform

BRICKPI, EV3BRICK, PISTORMS

Constructor Summary

Constructors

Constructor and Description
EV3IRSensor(java.lang.String portName)

Method Summary

Modifier and Type	Method and Description
SensorMode	getDistanceMode() EV3 Infra Red sensors, Distance mode Measures the distance to an object in front of the sensors.
private void	init()

Methods inherited from class ev3dev.hardware.sensors.BaseSensor

fetchSample, getAvailableModes, getCurrentMode, getMode, getMode, getModeCount, getName, sampleSize, setCurrentMode, setCurrentMode, setModes, switchMode, switchMode

Methods inherited from class ev3dev.hardware.EV3DevDevice

detect, getIntegerAttribute, getPlatform, getStringAttribute, setIntegerAttribute, setStringAttribute

Methods inherited from class ev3dev.hardware.Device

close, releaseOnClose

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

LEGO_EV3_IR

private static final java.lang.String LEGO_EV3_IR

See Also:

Constant Field Values

Constructor Detail

EV3IRSensor

public EV3IRSensor(java.lang.String portName)

Method Detail

init

private void init()

getDistanceMode

public SensorMode getDistanceMode()

EV3 Infra Red sensors, Distance mode
Measures the distance to an object in front of the sensors.

Size and content of the sample
The sample contains one element giving the distance to an object in front of the sensors. The distance provided is very roughly equivalent to meters but needs conversion to give better distance. See product page for details.
The effective range of the sensors in Distance mode is about 5 to 50 centimeters. Outside this range a zero is returned for low values and positive infinity for high values.

Returns:

A sampleProvider See leJOS conventions for SampleProviders See Sensor Product page
