Package ev3dev.hardware

Classes used to interact with low level objects in a Device supported by EV3Dev.

See: Description

Interface Summary

Interface	Description
SupportedPlatform	Define the platforms supported by EV3Dev project.

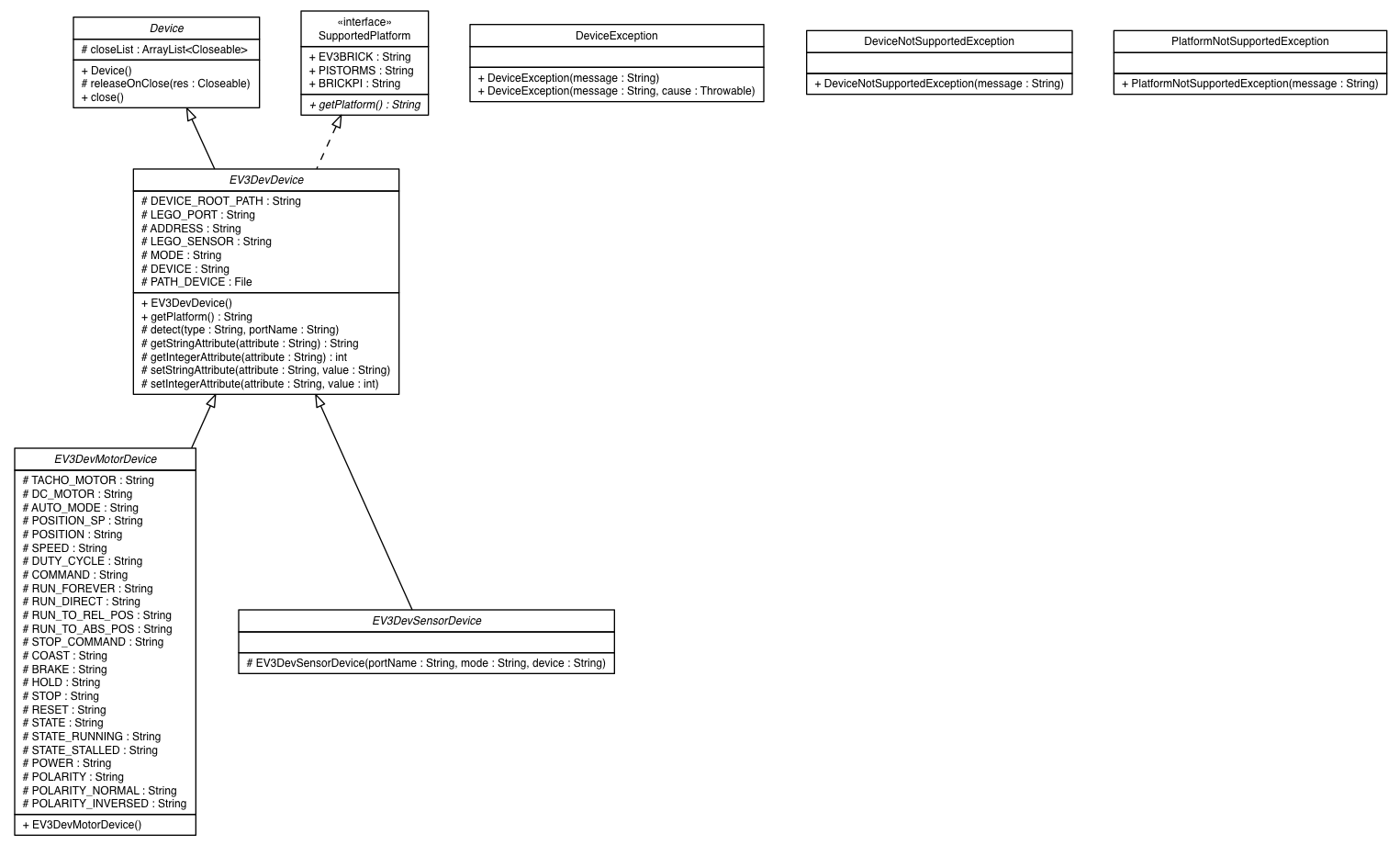

Class Summary

Class	Description
Device	Base class for sensors drivers & motors.
EV3DevDevice	This class been designed to discover if the library is used in: - EV3 Brick - Raspberry Pi 1 + PiStorms - Raspberry Pi 1 + BrickPi
EV3DevMotorDevice	Base class to interact with EV3Dev sysfs
EV3DevSensorDevice	Base class to interact with EV3Dev Sensors

Exception Summary

Exception	Description
DeviceException	Exception thrown when errors are detected in a sensors device state.
DeviceNotSupportedException	Exception thrown when the device is not supported in a platform.
PlatformNotSupportedException	Exception thrown when the device is not supported in a platform.

Package ev3dev.hardware Description

Classes used to interact with low level objects in a Device supported by EV3Dev. This package handles the concept about a Input/Output Device. A Device could be a Motor or a Sensor, but not every device is supported for all Supported platforms on EV3Dev. Besides, it is possible that in Runtime a Device is not detected on EV3Dev.
