lejos.robotics.filter

Class AbstractFilter

java.lang.Object

lejos.robotics.filter.AbstractFilter

All Implemented Interfaces:

SampleProvider

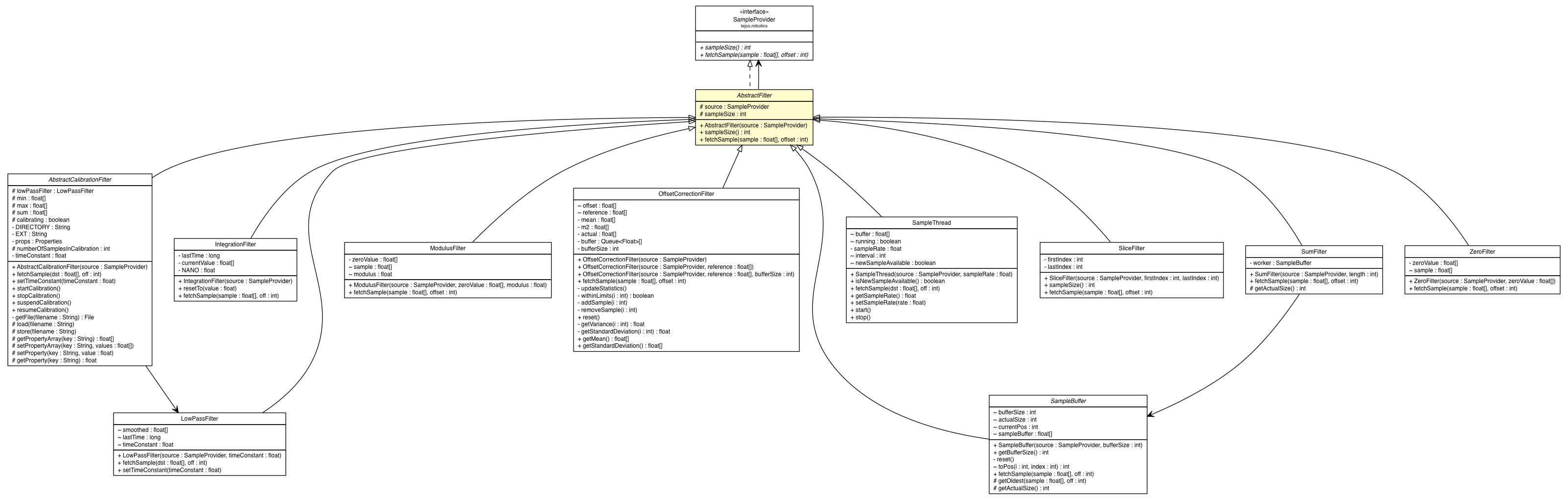

Direct Known Subclasses:

AbstractCalibrationFilter, IntegrationFilter, LowPassFilter, ModulusFilter, OffsetCorrectionFilter, SampleBuffer, SampleThread, SliceFilter, SumFilter, ZeroFilter

public abstract class AbstractFilter
extends java.lang.Object
implements SampleProvider

Base class for Sample filters

Field Summary

Fields

Modifier and Type	Field and Description
protected int	sampleSize
protected SampleProvider	source

Constructor Summary

Constructors

Constructor and Description
AbstractFilter(SampleProvider source)

Method Summary

Modifier and Type	Method and Description
void	fetchSample(float[] sample, int offset) Fetches a sample from a sensors or filter.
int	sampleSize() Returns the number of elements in a sample.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

source

protected final SampleProvider source

sampleSize

protected int sampleSize

Constructor Detail

AbstractFilter

public AbstractFilter(SampleProvider source)

Method Detail

sampleSize

public int sampleSize()

Description copied from interface: SampleProvider

Returns the number of elements in a sample.
The number of elements does not change during runtime.

Specified by:

sampleSize in interface SampleProvider

Returns:

the number of elements in a sample

fetchSample

public void fetchSample(float[] sample,
                        int offset)

Description copied from interface: SampleProvider

Fetches a sample from a sensors or filter.

Specified by:

fetchSample in interface SampleProvider

Parameters:

sample - The array to store the sample in.

offset - The elements of the sample are stored in the array starting at the offset position.
